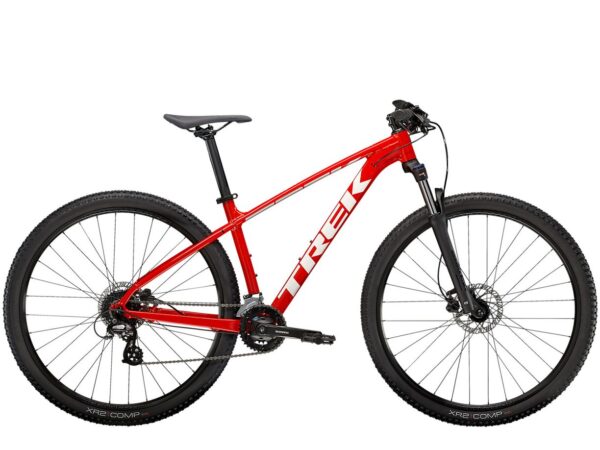

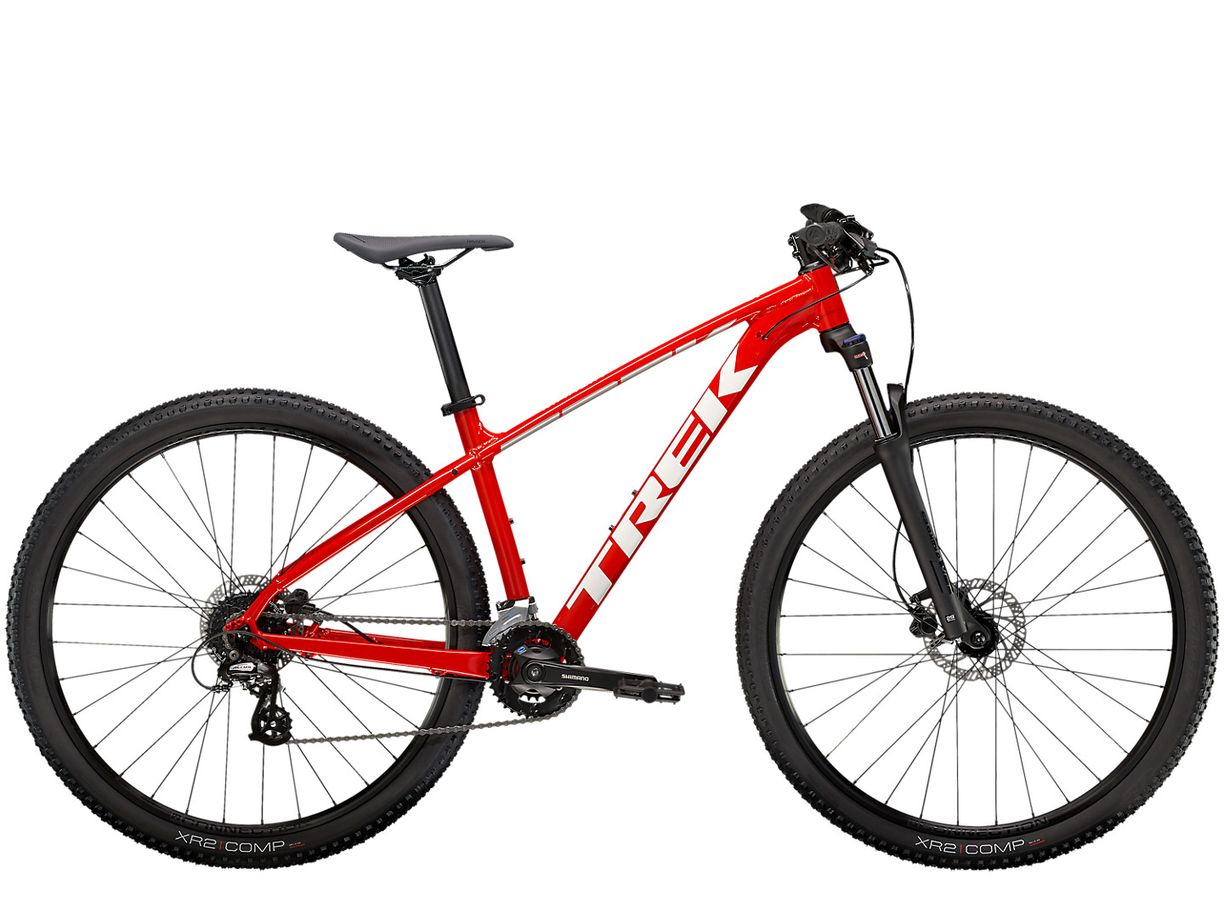

tegundir: Marlin, X-Caliber, Procaliber og Stache.
Vörulýsing
- It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
- Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- Like every Trek, it’s backed by a lifetime warranty
Frameset
- Frame – Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
- Fork Size: XXS – SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26″ wheel
- Fork Size: XS – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel
- Fork Size: S – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
- Fork Size: M , ML , L , XL , XXL – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
Wheels
- Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR
- Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
- Rim Size: XXS – Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
- Rim Size: XS , S , M , ML , L , XL , XXL – Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Spokes 14 g stainless steel
- Tyre Size: XXS – Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20″
- Tyre Size: XS , S – Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20″
- Tyre Size: M , ML , L , XL , XXL – Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″
Drivetrain
- Shifter – Shimano Altus M315, 8-speed
- Front derailleur – Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
- Rear derailleur – Shimano Altus M310
- Crank Size: XXS – Prowheel TM-CY10, 36/22, 160 mm length
- Crank Size: XS , S , M – Shimano M315, 36/22, 170 mm length
- Crank Size: ML , L , XL , XXL – Shimano M315, 36/22, 175 mm length
- Bottom bracket – VP BC73, 73 mm, threaded cartridge
- Cassette – Shimano 8-speed, 12-32T
- Chain – KMC Z8.3, 8 speed
- Pedal – VP-536 nylon platform
Components
- Saddle – Bontrager Arvada, steel rails, 138 mm width
- Seatpost Size: XXS – Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
- Seatpost Size: XS , S , M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
- Seatpost Size: ML , L , XL , XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
- Handlebar Size: XXS , XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
- Handlebar Size: S , M , ML , L , XL , XXL – Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
- Grips – Bontrager XR Endurance Comp
- Stem Size: XXS – Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length
- Stem Size: XS – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
- Stem Size: S – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
- Stem Size: M – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Stem Size: ML , L – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Stem Size: XL , XXL – Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
- Head set – Semi-integrated, 1-1/8″
- Brake Size: XXS , XS , S – Tektro HD-M276 hydraulic disc, short-reach lever
- Brake Size: M , ML , L , XL , XXL – Tektro HD-M275 hydraulic disc
Weight
- Weight – M – 14 kg
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
