Features
Features

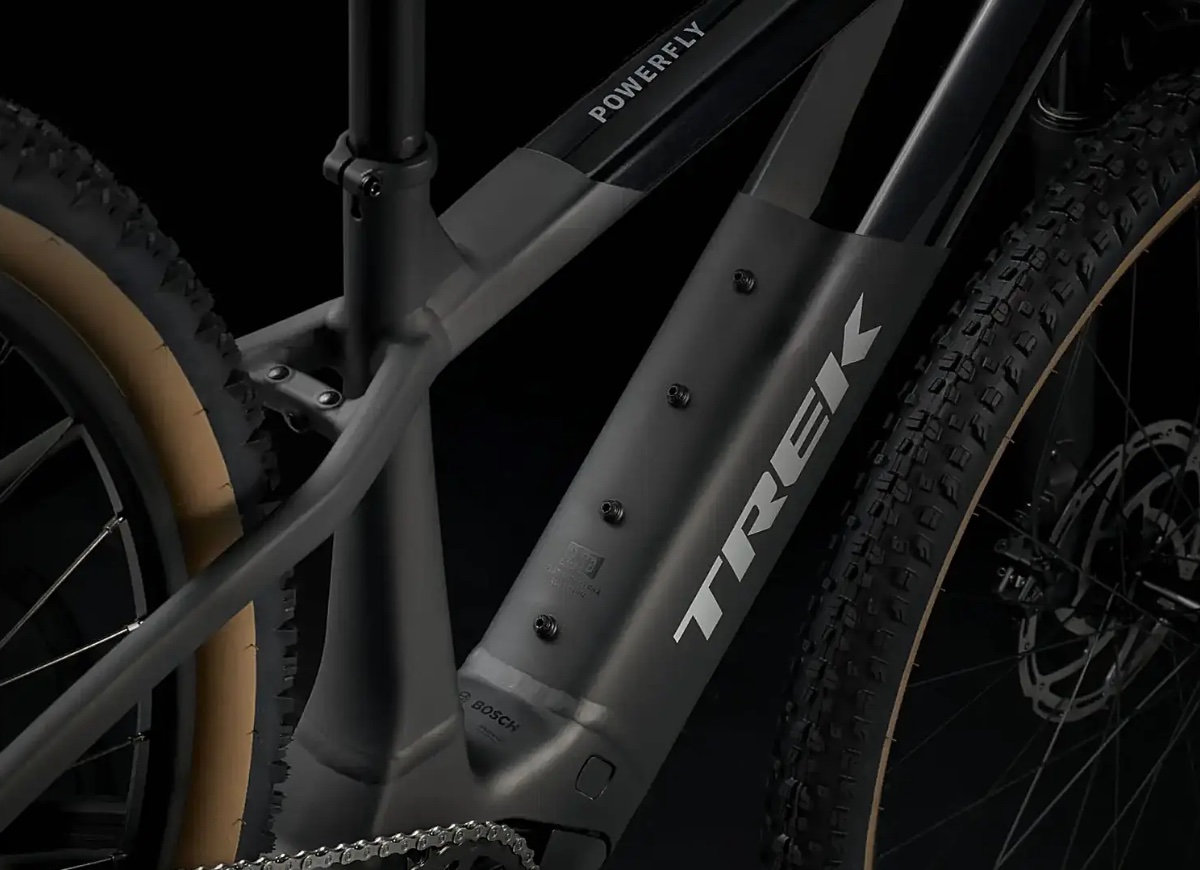

New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you don’t have to worry about dropping it thanks to a secondary safety catch.
Extend your ride
Wanna take your ride even further? Pair a 250 Wh PowerMore range extender with your bike to chase your most epic adventures.
Light, quiet, powerful: 100 Nm upgrade ready
Bosch’s Performance Line CX motor has 85 Nm of torque out of the box but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app, the all-new Bosch CX motor is lighter, quieter and now more powerful than ever without wavering on natural-feeling support for crushing epic rides.
Massive range for epic rides
Bosch’s new 800 Wh battery gives you enormous range for chasing down your greatest adventures – or you can swap to a 600 Wh option for a lighter-weight ride with more nimble handling.
Customise your ride
Get more utility and sleek integration with mudguards and a rack designed specifically for Powerfly, so you can customise your setup for everyday needs or epic exploration.
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
Bosch eBike Flow app
The new eBike Flow app turns your ride into a personalised experience. Use it to customise your motor’s assist behaviour, track your ride stats and integrate your data with apps like Strava and Apple Health. There’s even handy features like navigation and service reminders.Bosch eBike Flow app and associated features are not available in all markets. Check with your local Trek retailer for details.

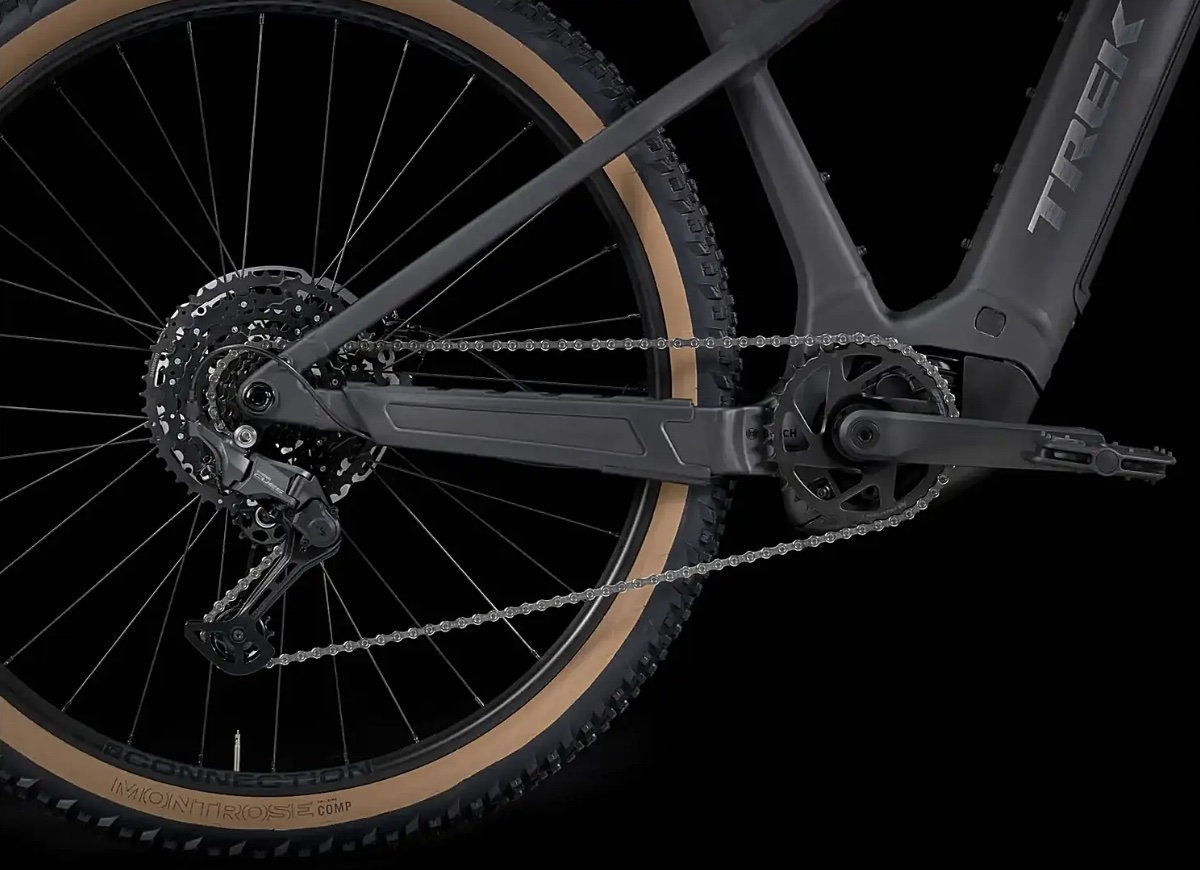

Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.
Specs
Frameset
- Frame
-
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
- Fork
-
Size: S
SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 100 mm travelSize: M , L , XL
SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 120 mm travel
Wheels
- Hub front
-
Shimano TC500 alloy, CentreLock, 110×15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148×12 mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- *Tyre
-
Size: S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5×2.40″Size: M , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29×2.40“ - Max tyre size
- Frame: 29×2.50″ (S: 27.5×2.50″), Fork: see manufacturer
E-system
- Battery
-
Bosch PowerTube 800 Wh, smart system
- Charger
-
Bosch standard 2A, 230V, smart system
- Computer
-
Bosch Purion 200
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Drivetrain
- Shifter
-
Shimano U6000, 10-speed
- Rear derailleur
-
Shimano CUES U6000 GS
- Crank
-
FSA Bosch CK-220, 36T ring, 165 mm length
- Chainring
-
FSA, 36T, steel
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
-
Shimano LG500, 9/10/11-speed
- Pedal
-
VP-536 nylon platform
- Max. chainring size
- 1x: 38T
Components
- Saddle
-
Bontrager Commuter Comp
- *Seatpost
-
Size: S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm lengthSize: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm lengthSize: L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length - Handlebar
-
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- *Grips
-
Size: S , M , L , XL
Bontrager XR Endurance Comp, lock-onSize: S , M , L , XL
Trek Ergonomic Comp, lock-on - Stem
-
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
- Head set
-
FSA IS-2, 1-1/8″ top, 1.5″ bottom
- Brake rotor
-
Tektro, CentreLock, 203 mm
- Brake Set
-
Tektro HD-M275 hydraulic disc
- Rotor size
- Max brake rotor sizes – Frame: 220 mm, min 180 mm, Fork: see fork manufacturer
Accessories
- Tool
-
Bontrager Switch thru axle, removable lever
Weight
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
Sizing
Sizing
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 – 165 cm 5’1″ – 5’5″ |
74 – 78 cm 29″ – 31″ |
| M |
165 – 177 cm 5’5″ – 5’10“ |
79 – 83 cm 31″ – 33″ |
| L |
177 – 188 cm 5’10“ – 6’2″ |
84 – 89 cm 33″ – 35″ |
| XL |
188 – 195 cm 6’2″ – 6’5″ |
89 – 91 cm 35″ – 36″ |
