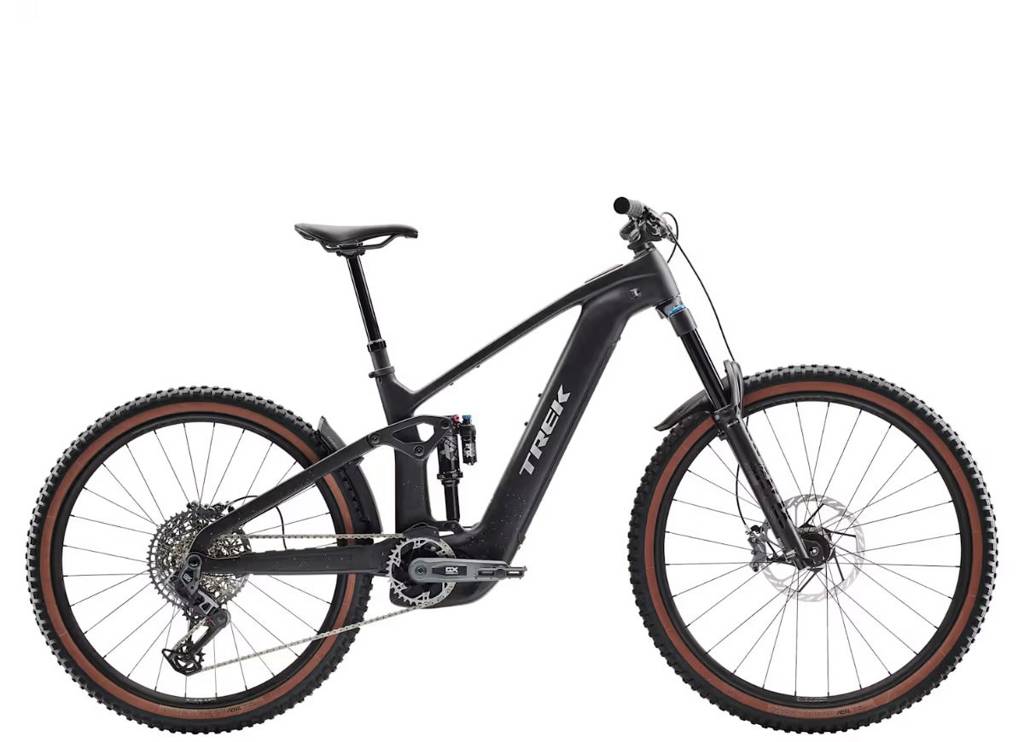

Rail+ 9.8 AXS (800Wh) Gen5

OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel

Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel

Fox Performance Elite Float X, 2-position damper, 205mm x 65mm

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''

Bontrager Switch thru-axle, removable lever

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"

Bontrager TLR sealant, 180 ml/6 oz

Bontrager TLR

Frame: 27.5x2.60", Fork: See manufacturer

Bosch PowerTube 800 Wh, smart system

Bosch standard 4A, 230V, smart system

Bosch System Controller BRC3100, smart system

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC), Up to 120 Nm of torque.

SRAM AXS POD

SRAM GX Eagle AXS, T-Type

SRAM GX, 160 mm length

SRAM T-Type, 34T, steel

SRAM Eagle XS-1275, T-Type,10-52, 12-speed

SRAM GX Eagle, T-Type, 12-speed

VP-536 nylon platform

1x: 36T

Verse Short Comp, steel rails, 145 mm width

Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width

Bontrager XR Trail Elite, nylon lock-on

Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length

SRAM Maven Bronze 4-piston hydraulic disc

SRAM HS2, 6-bolt, 220mm

SRAM HS2, 6-bolt, 200mm

Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Trek 27.5" custom fender

M – 24.18 kg (with TLR sealant, no tubes)

136 kg maximum total weight (bicycle, rider and cargo)
