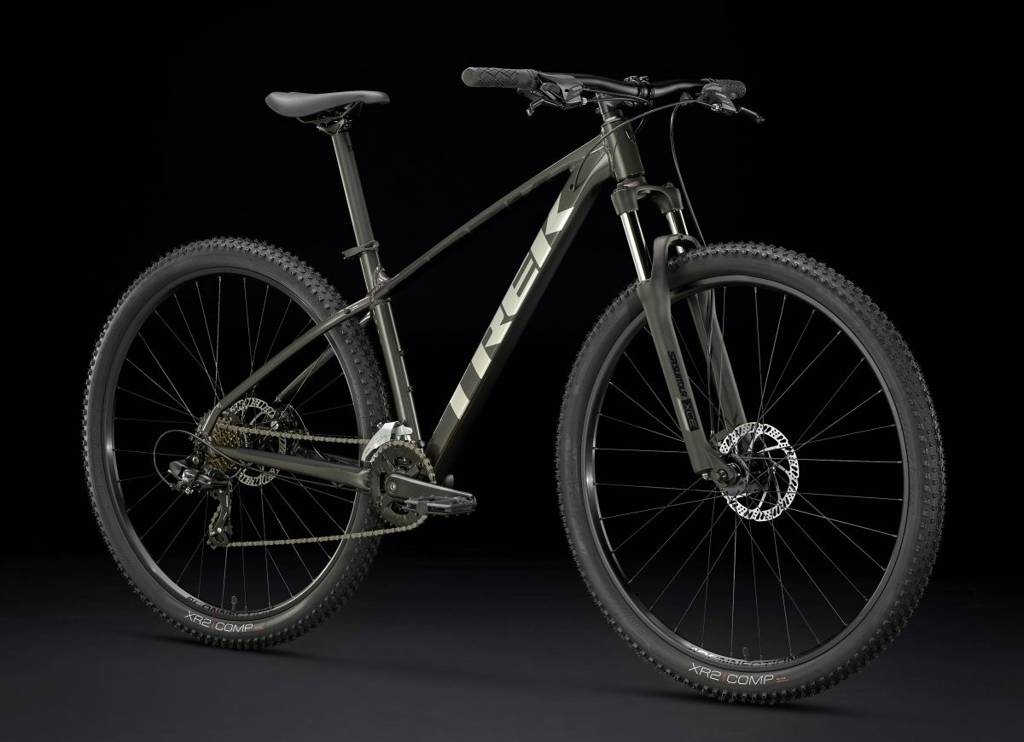

Marlin 4 Gen2.1 - (L & XL)

−40%124.990 kr.74.994 kr.

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It’s ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-s…

Choose a color

Choose a size

Store: Sold out

SKU: 0100647047/?/?

Brand: TREK

Returns policy

Financing options

PayLéttkaup

2.083 kr. /mo

Specifications

Frame Size: XS , S

Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR

Frame Size: M , ML , L , XL , XXL

Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

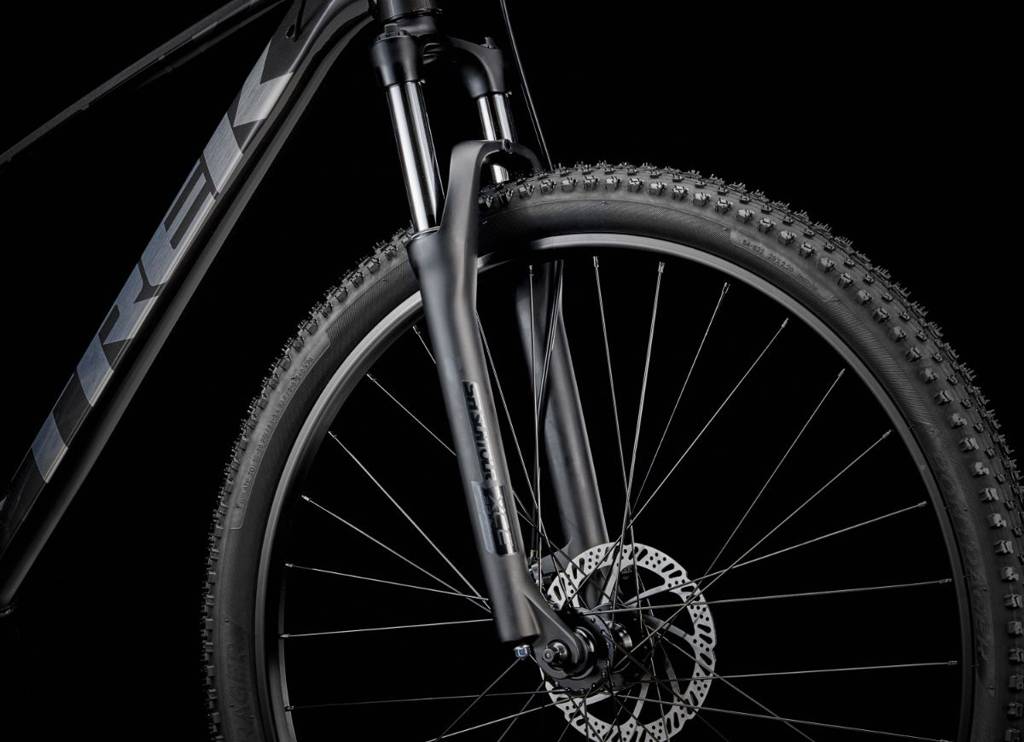

Fork Size: XS

SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel

Fork Size: S

SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Fork Size: M , ML , L , XL , XXL

SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Max compatible fork travel

100 mm (XS and S: 490 mm axle-to-crown, M and up: 509 mm axle-to-crown)

Hub front

Formula DC-20, alloy, 6-bolt, 5x100 mm QR

Hub rear

Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR

Skewer rear

152x5 mm QR

Rim

Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

Spokes

14 g stainless steel, black

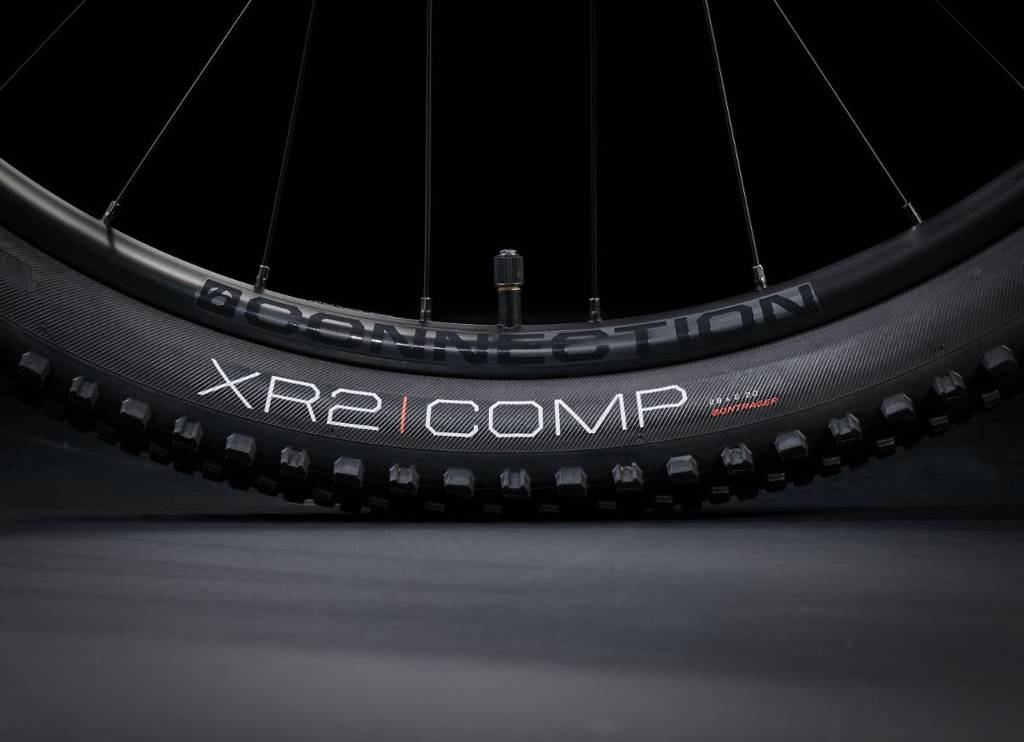

Tyre Size: XS , S

Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"

Tyre Size: M , ML , L , XL , XXL

Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"

Max tyre size

Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer

Shifter

Shimano EF500, 2-speed

Shifter

Shimano Altus EF500, 7-speed

Front derailleur

Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

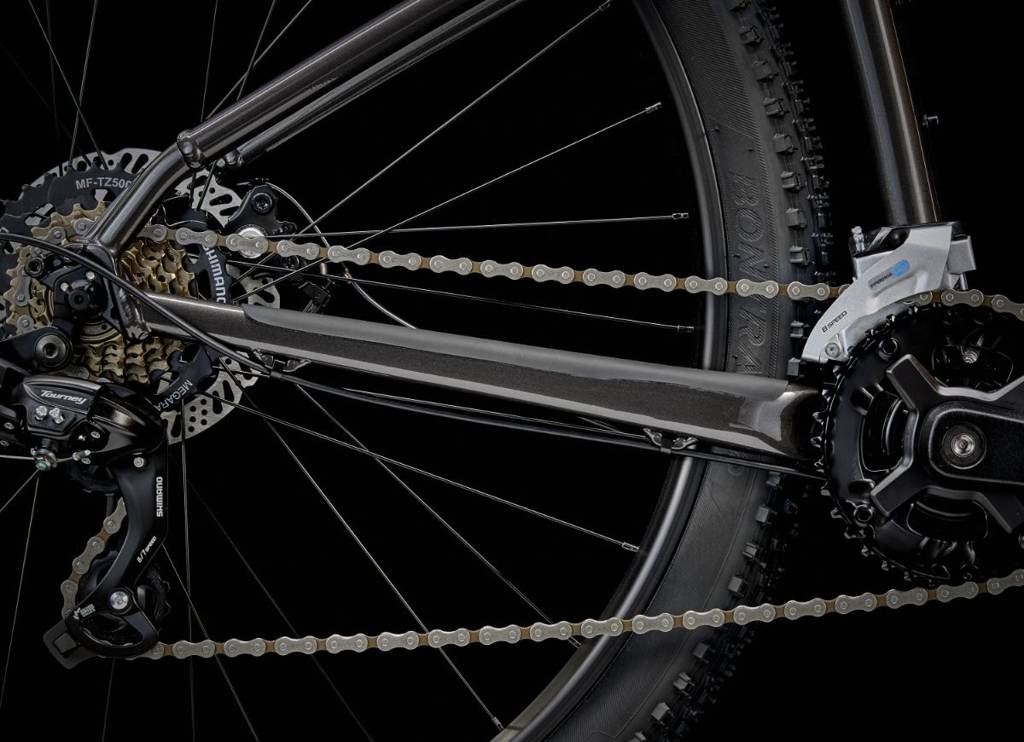

Rear derailleur

Shimano Tourney TY300

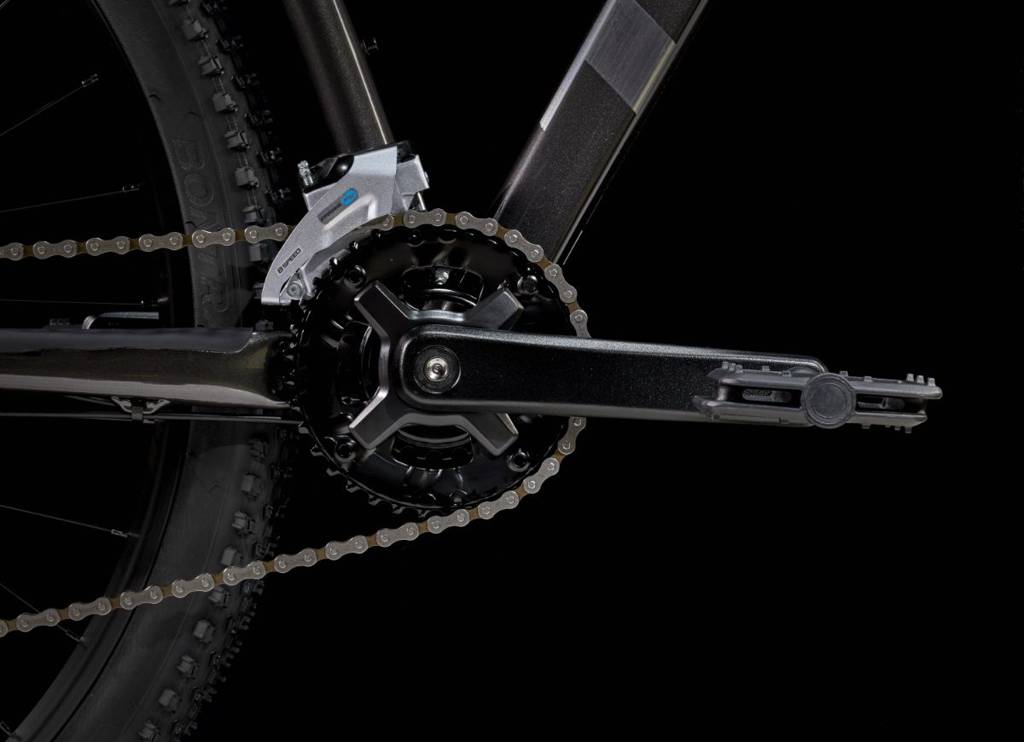

Crank Size: XS , S , M

ProWheel TM-CY10, 36/22, 170 mm length

Crank Size: ML , L , XL , XXL

ProWheel TM-CY10, 36/22, 175 mm length

Bottom bracket

VP BC73, 73 mm, threaded cartridge

Cassette

Shimano TZ500, 14-34, 7-speed

Chain

KMC Z7, 7-speed

Pedal

VP-536 nylon platform

Max. chainring size

1x: See FAQ, 2x: 36T, 3x: 42T

Saddle

Bontrager Verse Short, stainless steel rails

Seatpost Size: XS , S

Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

Seatpost Size: M

Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length

Seatpost Size: ML , L , XL , XXL

Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

Handlebar Size: XS , S

Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Handlebar Size: M , ML , L , XL , XXL

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Bontrager XR Endurance Comp, lock-on

Stem Size: XS , S

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Stem Size: M

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length

Stem Size: ML , L

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

Stem Size: XL , XXL

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length

Head set

Semi-integrated, 1-1/8"
