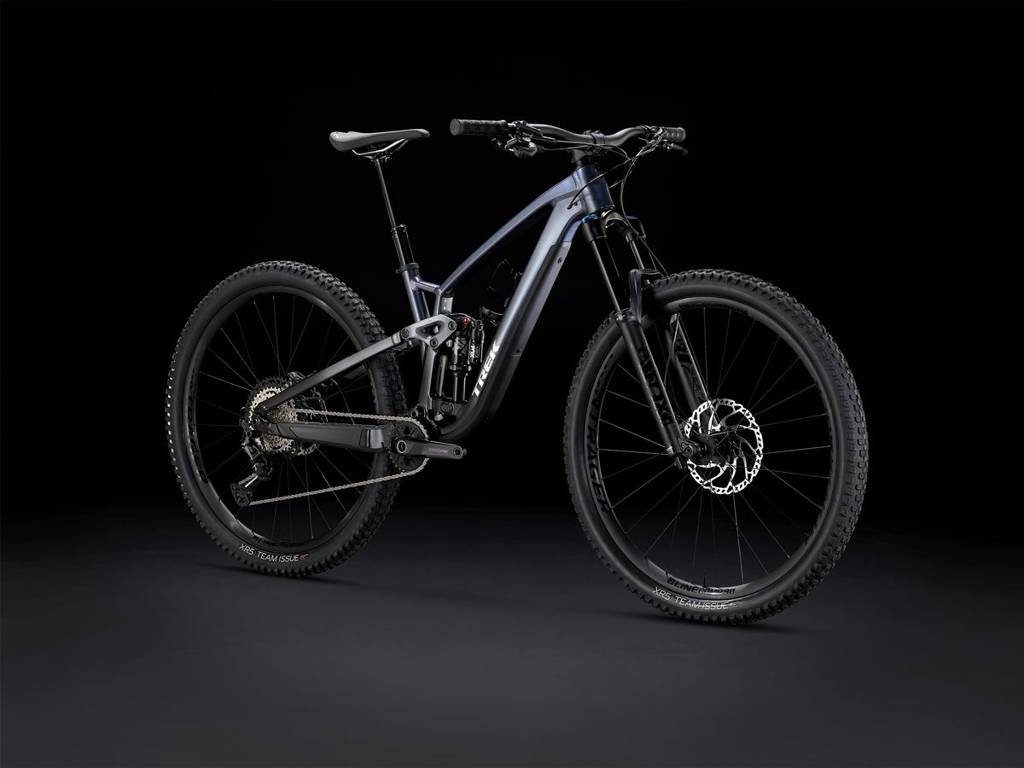

Fuel EX 8 Gen6 - M & XL

Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel

Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel

Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

Fox Performance Float X, 2-position damper, 185 mm x 55 mm

160mm

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle

Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Bontrager Switch thru-axle, removable lever

Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve

Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"

Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"

Bontrager TLR sealant, 180 ml/6 oz

Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

Shimano XT M8100, 12-speed

Shimano XT M8100, long cage

Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length

Shimano BB-MT501 BSA

Shimano SLX M7100, 12-speed

1x: 34T round, 32T oval, min 28T

Bontrager Arvada, hollow chromoly rails, 138 mm width

TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm

TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm

TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm

Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width

Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width

Bontrager XR Trail Elite, nylon lock-on

Bontrager Elite, 35 mm, 0-degree, 35 mm length

Bontrager Elite, 35 mm, 0-degree, 45 mm length

Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper

SRAM DB 8 4-piston hydraulic disc

Shimano RT66, 6-bolt, 180 mm

Shimano RT66, 6-bolt, 203 mm

SRAM CentreLine, 6-bolt, round edge, 180 mm

SRAM CentreLine, 6-bolt, round edge, 200 mm

Frame: 203mm, Fork: see fork manufacturer

M – 15.65 kg (with TLR sealant, no tubes)

Maximum total weight limit (bicycle, rider and cargo) of 136 kg
