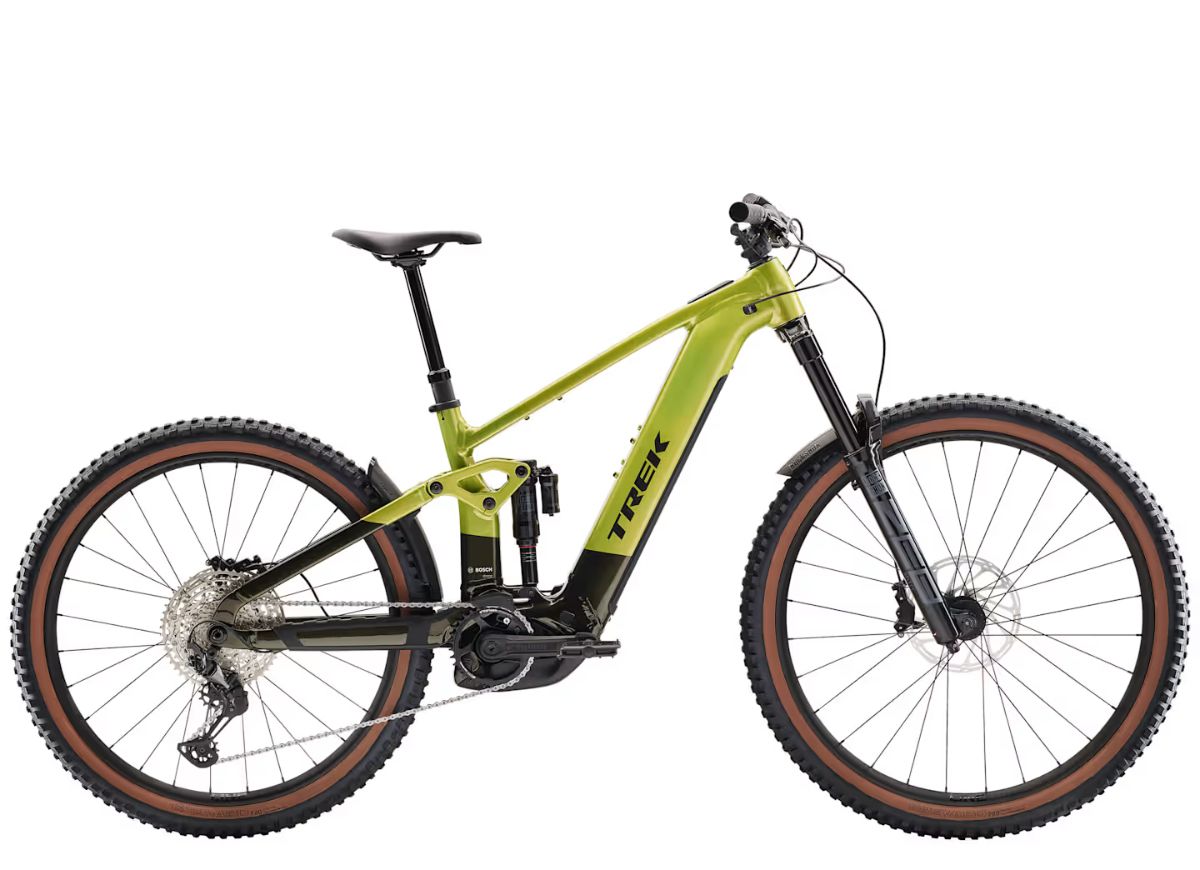

Rail+ 8 (Gen5)

Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel

RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel

RockShox Super Deluxe Select RT, 205mm x 65mm

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"

Bontrager Switch thru axle, removable lever

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"

Bontrager TLR sealant, 180 ml/6 oz

Bontrager TLR

Frame: 27.5x2.60", Fork: See manufacturer

Bosch PowerTube 800 Wh, smart system

Bosch standard 4A, 230V, smart system

Bosch System Controller BRC3100, smart system

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC), Up to 120 Nm of torque.

Shimano SLX M7100, 12-speed

Shimano XT M8100, long cage

E*thirteen E*spec Plus, 160 mm length

Shimano Deore M6100, 10-51, 12-speed

Shimano SLX M7100, 12-speed

1x: 36T

Bontrager Verse P3, steel rails

Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width

Bontrager XR Trail Comp, nylon lock-on

Bontrager Elite, 35 mm, 0-degree, 45 mm length

SRAM DB 8 4-piston hydraulic disc

SRAM CentreLine, 6-bolt, round-edge, 200 mm

Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Trek custom mudguard

M – 25.08 kg (with TLR sealant, no tubes)

136 kg (combined weight of bicycle, rider and cargo)
