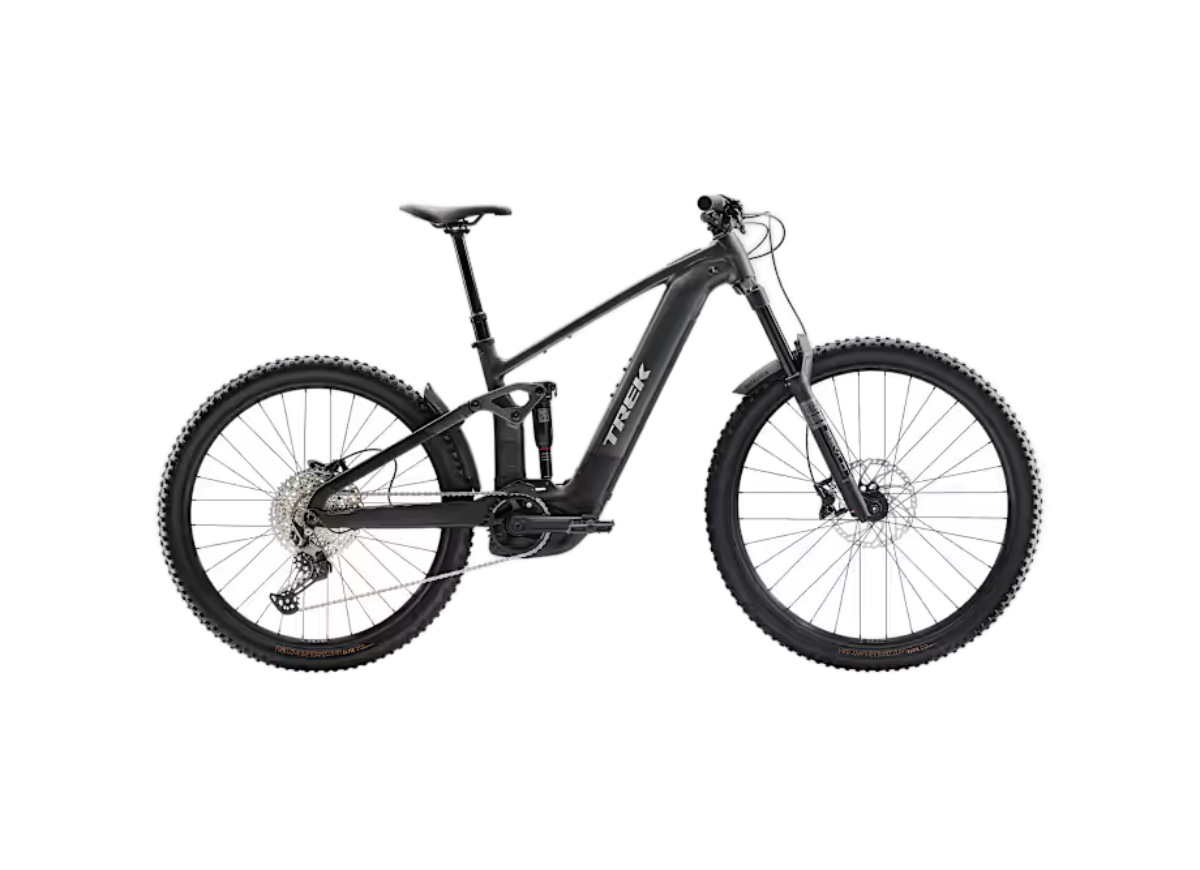

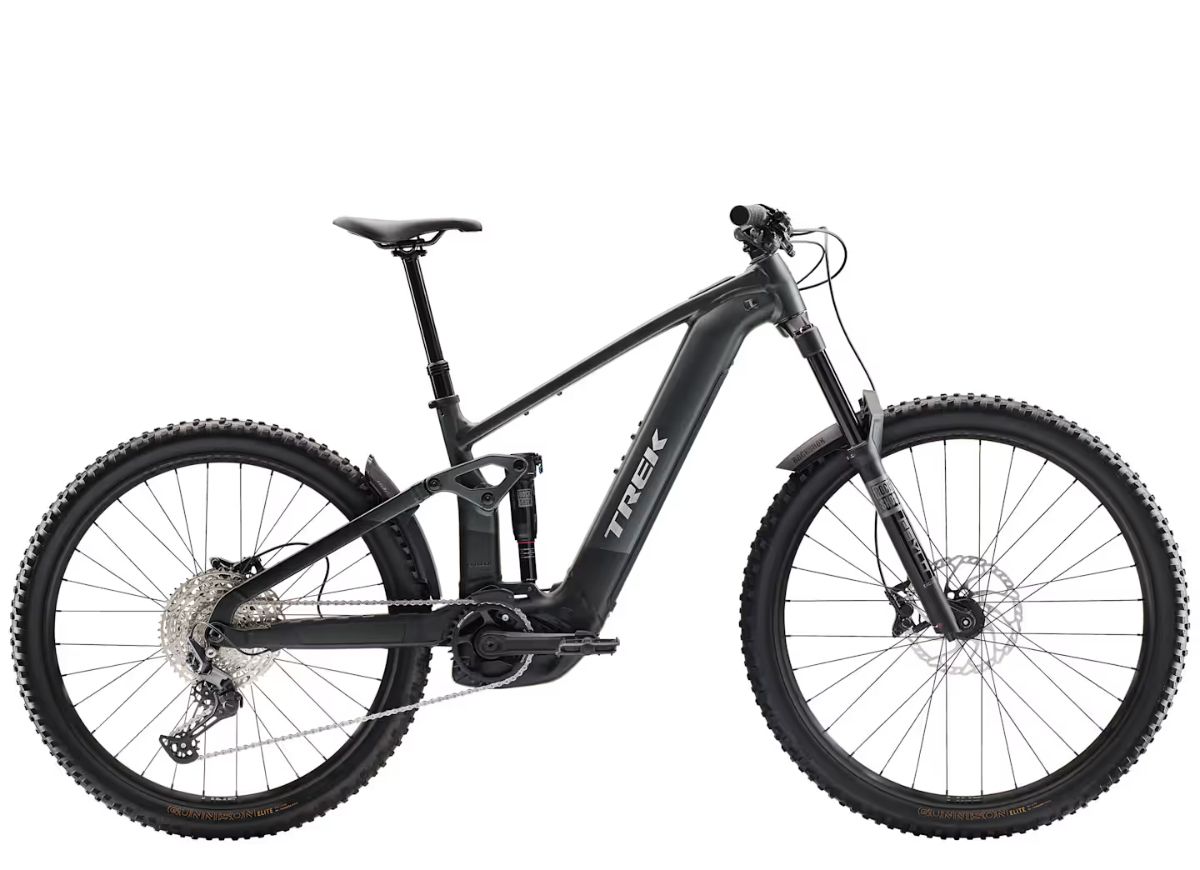

Rail+ 5 (Gen5)

Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel

RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel

RockShox Deluxe Select+ RT, 205 mm x 65 mm

Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle

Bontrager Switch thru axle, removable lever

Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"

Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"

Bontrager TLR sealant, 180 ml/6 oz

Bontrager TLR

Frame: 27.5x2.60", Fork: See manufacturer

Bosch PowerTube 800 Wh, smart system

Bosch standard 2A, 230V, smart system

Bosch System Controller BRC3100, smart system

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC), Up to 120 Nm of torque.

Shimano Deore M6100, 12-speed

Shimano Deore M6100, long cage

E*thirteen E*spec Plus, 160 mm length

Shimano Deore M6100, 10-51, 12-speed

Shimano Deore M6100, 12-speed

VP-536 nylon platform

1x: 36T

Bontrager Verse P3, steel rails

TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm

TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Bontrager XR Trail Comp, nylon lock-on

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper

Shimano RT66, 6-bolt, 203 mm

Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Trek custom mudguard

M - 25.28 kg (with TLR sealant, no tubes)

136 kg (combined weight of bicycle, rider and cargo)
