Marlin, X-Caliber, Procaliber, Stache


Stærðir til viðmiðunar. Fleira en hæð og innri saumur (inseam) getur skipt máli þegar stærð á hjóli er valin. Sölumenn í verslun geta aðstoðað við að finna út réttu stærðina.


StellstærðHæðInseam
XS137-155 cm64-73 cm
S153-162 cm72-76 cm
M161-172 cm76-81 cm
ML170-179 cm80-84 cm
L177-188 cm83-88 cm
XL186-196 cm87-92 cm
2XL195-203 cm92-95 cm

Stærðartafla fyrir eftirfarandi tegundir: Marlin, X-Caliber, Procaliber og Stache.

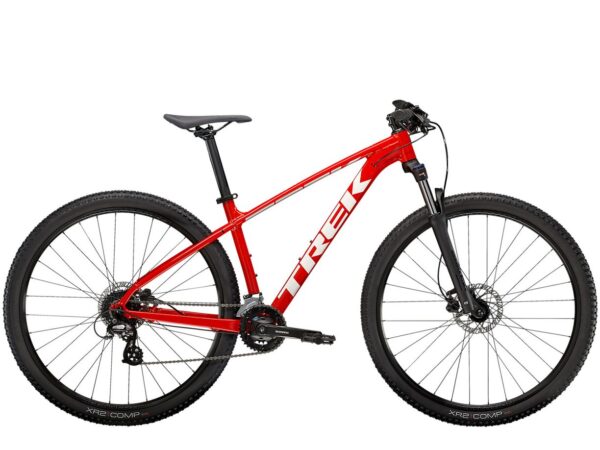

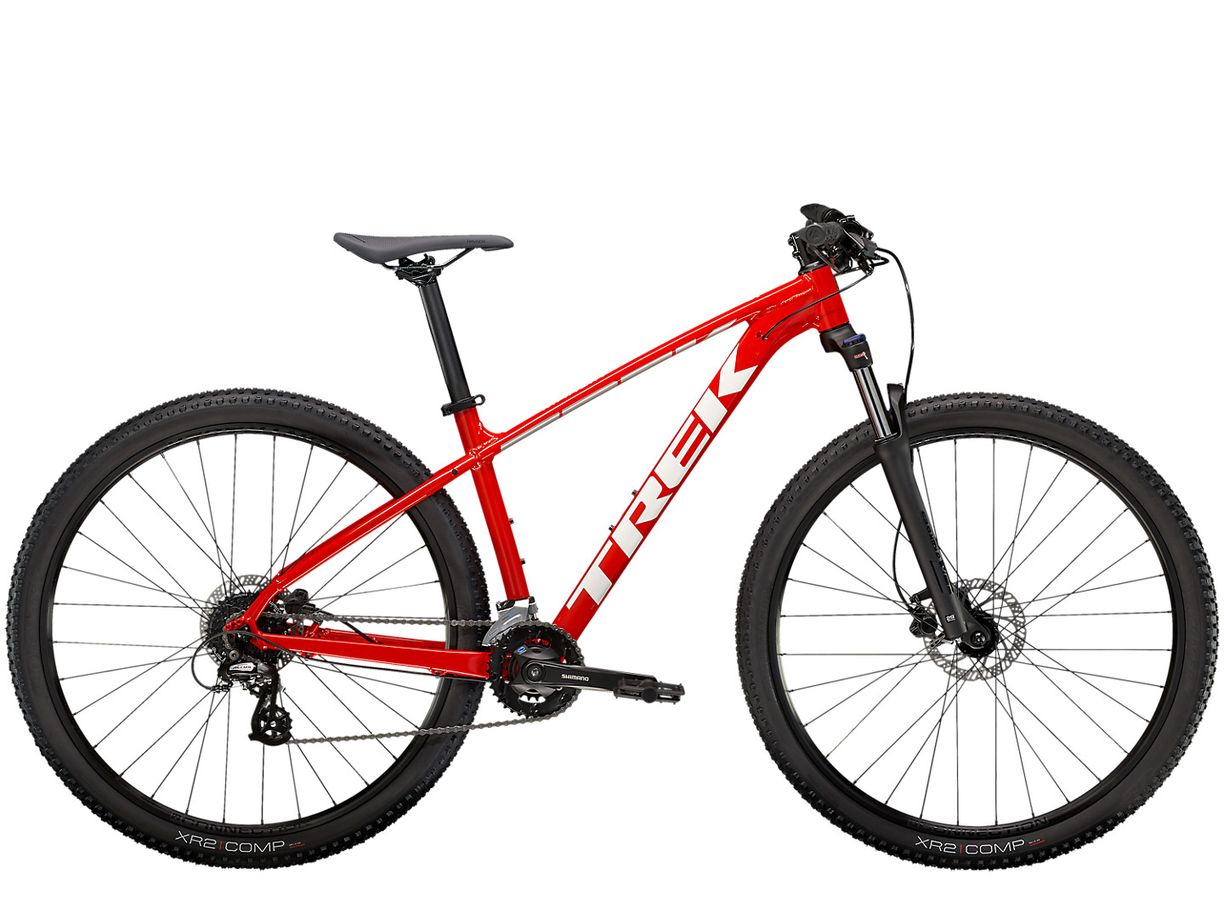

Marlin 5 Gen2

114.990 kr.

Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2×8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Síminn Pay Léttkaup
kr/mán
(m.v. mán)

mán.

Miðað við greiðslur á % vöxtum.

Aðeins % lántökugjald og kr. færslugjald á mánuði.

Árleg hlutfallstala kostnaðar: %.

Heildarkostnaður: kr.

Vörunúmer: 0100636625 Flokkur: Brand:
Stærðartafla

Vörulýsing

  • It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
  • Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  • The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
  • Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  • Like every Trek, it’s backed by a lifetime warranty

Frameset

  • Frame – Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
  • Fork Size: XXS – SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26″ wheel
  • Fork Size: XS – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel
  • Fork Size: S – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
  • Fork Size: M , ML , L , XL , XXL – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel

Wheels

  • Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR
  • Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
  • Rim Size: XXS – Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
  • Rim Size: XS , S , M , ML , L , XL , XXL – Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
  • Spokes 14 g stainless steel
  • Tyre Size: XXS – Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20″
  • Tyre Size: XS , S – Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20″
  • Tyre Size: M , ML , L , XL , XXL – Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″

Drivetrain

  • Shifter – Shimano Altus M315, 8-speed
  • Front derailleur – Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
  • Rear derailleur – Shimano Altus M310
  • Crank Size: XXS – Prowheel TM-CY10, 36/22, 160 mm length
  • Crank Size: XS , S , M – Shimano M315, 36/22, 170 mm length
  • Crank Size: ML , L , XL , XXL – Shimano M315, 36/22, 175 mm length
  • Bottom bracket – VP BC73, 73 mm, threaded cartridge
  • Cassette – Shimano 8-speed, 12-32T
  • Chain – KMC Z8.3, 8 speed
  • Pedal – VP-536 nylon platform

Components

  • Saddle – Bontrager Arvada, steel rails, 138 mm width
  • Seatpost Size: XXS – Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
  • Seatpost Size: XS , S , M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  • Seatpost Size: ML , L , XL , XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
  • Handlebar Size: XXS , XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
  • Handlebar Size: S , M , ML , L , XL , XXL – Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
  • Grips – Bontrager XR Endurance Comp
  • Stem Size: XXS – Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length
  • Stem Size: XS – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
  • Stem Size: S – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
  • Stem Size: M – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Stem Size: ML , L – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Stem Size: XL , XXL – Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
  • Head set – Semi-integrated, 1-1/8″
  • Brake Size: XXS , XS , S – Tektro HD-M276 hydraulic disc, short-reach lever
  • Brake Size: M , ML , L , XL , XXL – Tektro HD-M275 hydraulic disc

Weight

  • Weight – M – 14 kg
  • Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.

Nánari upplýsingar

Litur

Volt Miami Fade, Azure, Radioactive Red, Lithium Grey Chrome

Stærð

ML/18.5/29", XL/21.5/29", L/19.5/29", XXL/23/29", XXS/13.5/26", XS/13.5/27.5", S/15.5/27.5", M/17.5/29"
