tegundir: Verve, DS (Dual Sport), FX, Allant+ og Verve+.
Vörulýsing
Features
Features
Fast and comfortable
Our Active geometry puts you in a slightly more forward position to give you more pedalling efficiency while staying comfortable on long rides.
All-road capable
Wide 42c Girona tyres offer traction and control on tarmac or rough tracks.
Reliable and durable

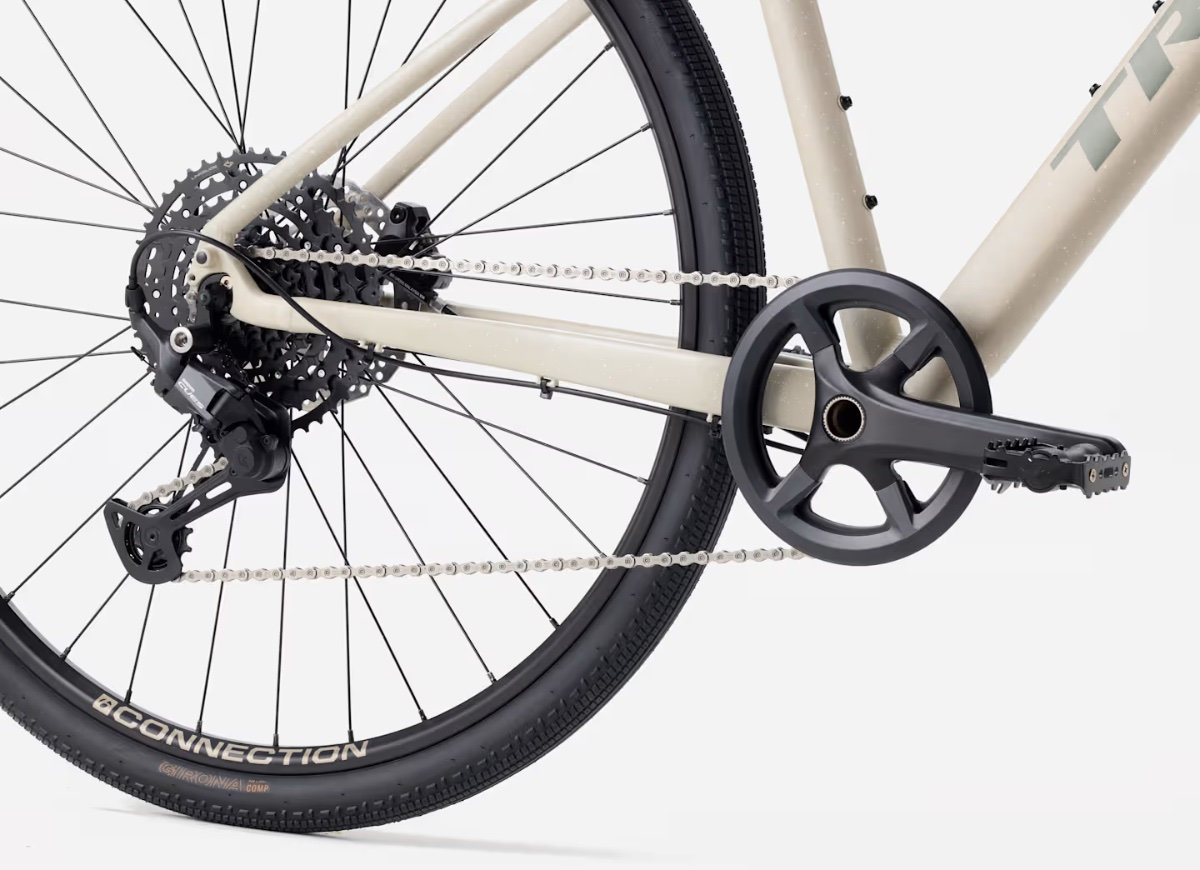

The Shimano CUES drivetrain offers a hassle-free, low-maintenance performance riders can rely on for the long haul. CUES features Shimano’s new LINKGLIDE drivetrain technology for less wear and tear on chains, cassettes and chainrings.
Specs
Frameset
- Frame
-
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135×5 mm QR
- Fork
-
FX carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
Wheels
- Hub front
-
Formula DC-20, alloy, 6-bolt, 100×5 mm
- Skewer front
-
139×5 mm bolt-on
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm
- Skewer rear
-
152×5 mm QR
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Tyre
-
Bontrager Girona Comp, wire bead, 60 tpi, 700×42 mm
Drivetrain
- Shifter
-
Shimano CUES U6000 w/optical gear display, 10-speed
- Rear derailleur
-
Shimano CUES U6000 GS
- *Crank
-
Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm lengthSize: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length - Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
-
Shimano LG500
- Pedal
-
Wellgo nylon body, alloy cage
Components
- Saddle
-
Verse Short, chromoly rails, 145 mm width
- *Seatpost
-
Size: XS, S, M
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm lengthSize: L, XL
Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length - *Handlebar
-
Size: XS, S
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm widthSize: M, L
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm widthSize: XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width - Grips
- *Stem
-
Size: XS, S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: M, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm lengthSize: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Brake
-
Shimano hydraulic disc, MT201 lever, UR300 calliper
- Brake rotor
-
Shimano RT26, 6-bolt, 160 mm
Weight
- Weight
- M – 11.10 kg/24.48 lb
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing
Sizing
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 – 155 cm 4’10“ – 5’1″ |
69 – 73 cm 27″ – 29″ |
| S |
155 – 165 cm 5’1″ – 5’5″ |
72 – 78 cm 28″ – 31″ |
| M |
165 – 175 cm 5’5″ – 5’9″ |
77 – 83 cm 30″ – 33″ |
| L |
175 – 186 cm 5’9″ – 6’1″ |
82 – 88 cm 32″ – 35″ |
| XL |
186 – 197 cm 6’1″ – 6’6″ |
87 – 93 cm 34″ – 37″ |
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
