Vörulýsing
It’s right for you if…
Chamois or cut-off shorts, bikepacking trip or brutal day of gravel racing – you’re going to ride far and have a great time. You want a bike that’s both fast and comfortable, and you want endless options for loading up gear and heading to gravel races and on everyday adventures.
The tech you get
A 500 Series OCLV Carbon frame with damped rear IsoSpeed and carbon armour, progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, internal frame storage, hidden cables that won’t interfere with bags and integrated frame, fork, rack and mudguard mounts. Plus, a carbon fork, a 2×12 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel and Paradigm SL wheels. You can even run a dropper post to get low on long descents.
The final word

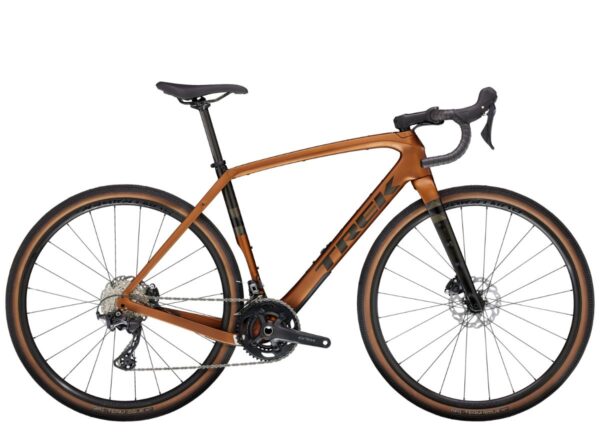

Light, fast, comfortable. The Checkpoint SL 5 gives you the unmatched ride quality of an OCLV Carbon frame with IsoSpeed and gravel-specific geometry, plus internal storage and a drivetrain built for rough terrain.
Why you’ll love it
- It’s equipped with rugged, gravel-focused 2×12 Shimano GRX drivetrain that’s made for tackling the roads less travelled
- Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
- Fork mounts, frame mounts, and rack and mudguard mounts allow you to carry all the gear you need for day trips and bikepacking adventures
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
Specifications
Frameset
- Frame – 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle
- Fork – Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
- Shifter – Shimano GRX RX610, 12-speed
- Front derailleur – Shimano GRX RX820, braze-on, down swing
- Rear derailleur – Shimano GRX RX820, 36T max cog
- Crank Size: 49 – Shimano GRX RX610, 46/30, 165 mm length
- Crank Size: 52 – Shimano GRX RX610, 46/30, 170 mm length
- Crank Size: 54, 56 – Shimano GRX RX610, 46/30, 172.5 mm length
- Crank Size: 58, 61 – Shimano GRX RX610, 46/30, 175 mm length
- Bottom bracket – Praxis, T47 threaded, internal bearing
- Cassette – Shimano 105 7100, 11-36, 12-speed
- Chain – Shimano SLX M7100, 12-speed
- Max. chainring size 1x: 46T, 2x: 50/37
Wheels
- Wheel front – Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100×12 mm thru axle
- Wheel rear – Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142×12 mm thru axle
- Hub front – Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
- Skewer front – Bontrager Switch thru axle, removable lever
- Hub rear – Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
- Skewer rear – Bontrager Switch thru-axle, removable lever
- Rim – Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Tyre – Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 mm
- Tyre part – Bontrager TLR sealant, 180 ml/6 oz
- Rim strip – Bontrager TLR
- Max tyre size – See service manual
Components
- Saddle Size: 49, 52 – Bontrager Verse Comp, steel rails, 155 mm width
- Saddle Size: 54, 56, 58, 61 – Bontrager Verse Comp, steel rails, 145 mm width
- Seatpost – Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Handlebar Size: 49 – Bontrager Elite Gravel, 38 cm width
- Handlebar Size: 52 – Bontrager Elite Gravel, 40 cm width
- Handlebar Size: 54, 56 – Bontrager Elite Gravel, 42 cm width
- Handlebar Size: 58, 61 – Bontrager Elite Gravel, 44 cm width
- Handlebar tape – Bontrager Supertack Perf tape
- Stem Size: 49 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Stem Size: 52, 54 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Stem Size: 56, 58 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Stem Size: 61 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
- Brake – Shimano RX410 hydraulic disc, flat mount
- Brake rotor – Shimano RT70, CentreLock, 160 mm
- Rotor size – Max brake rotor sizes: 160 mm front and rear
Accessories
- Bag – Bontrager BITS Internal Frame Storage Bag
Weight
- Weight – 56 – 9.76 kg (with TLR sealant, no tubes)
- Weight limit – This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg.
