Name: Checkpoint ALR 3
Brand: TREK
SKU: 0100652369
Availability: InStock

Racer, Gravel, Cyclocross, Touring

Stærðir til viðmiðunar. Fleira en hæð og innri saumur (inseam) getur skipt máli þegar stærð á hjóli er valin. Sölumenn í verslun geta aðstoðað við að finna út réttu stærðina.

Stellstærð	Hæð	Inseam
44 cm	150-155 cm	71-73 cm
47 cm	152-159 cm	71-75 cm
49 cm	158-163 cm	74-77 cm
50 cm	157-164 cm	74-77 cm
51 cm	162-168 cm	76-79 cm
52 cm	162-169 cm	76-79 cm
54 cm	167-174 cm	78-82 cm
56 cm	173-180 cm	81-85 cm
58 cm	179-186 cm	84-87 cm
60 cm	184-191 cm	86-90 cm
62 cm	189-196 cm	89-92 cm

Stærðartafla fyrir eftirfarandi

tegundir: Domane, Émonda, Madone, Crossrip, Checkpoint, Boone, 520 og 920.

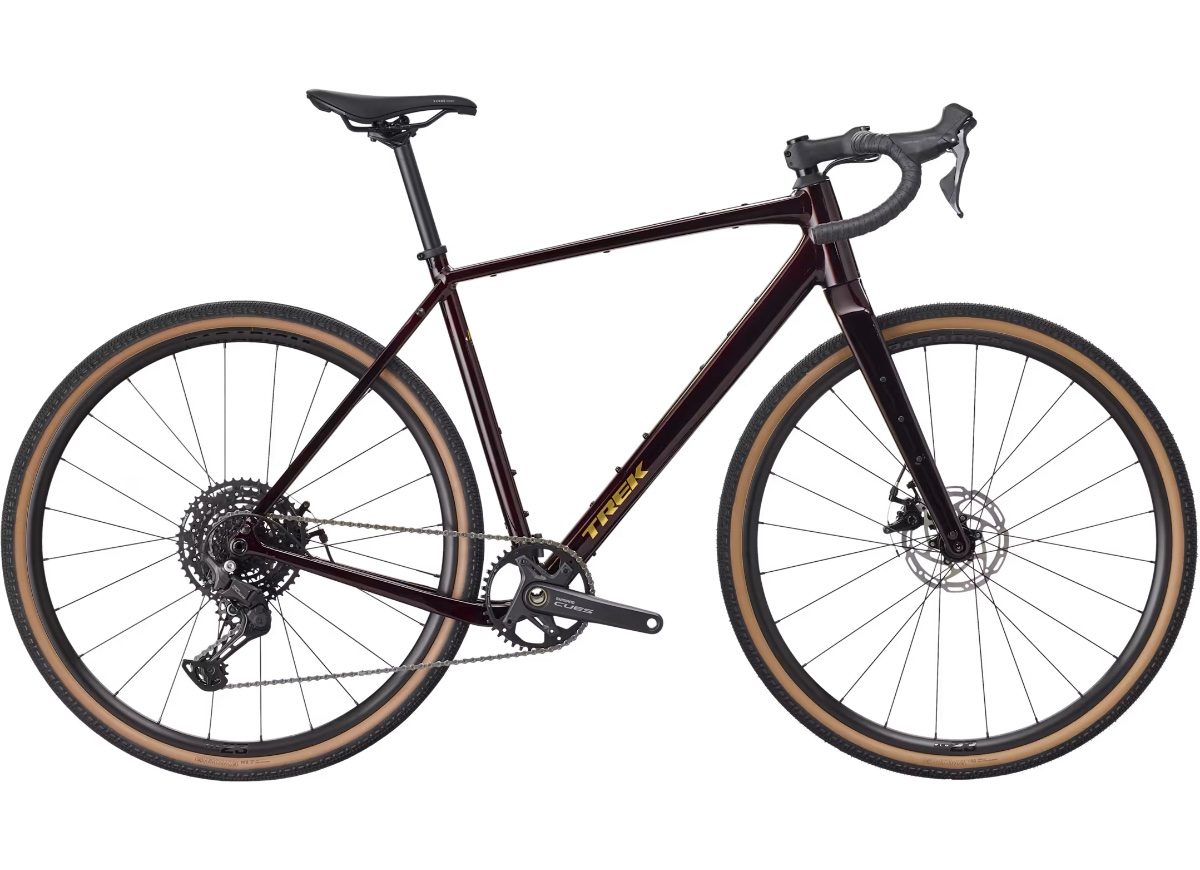

Checkpoint ALR 3

289.990 kr.

Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring beyond the pavement. Its modern endurance geometry keeps you comfortable over rough roads and long miles, while a carbon fork helps smooth out chatter and potholes. With clearance for up to 50mm tires, 10-speed Shimano CUES shifting, mechanical disc brakes, and plenty of mounts for bags and gear, it’s ready for everything from gravel detours to weekend escapes.

Litur

Stærð

Vörunúmer: 0100652369 Flokkur: Gravel Brand: TREK

Vörulýsing

Features

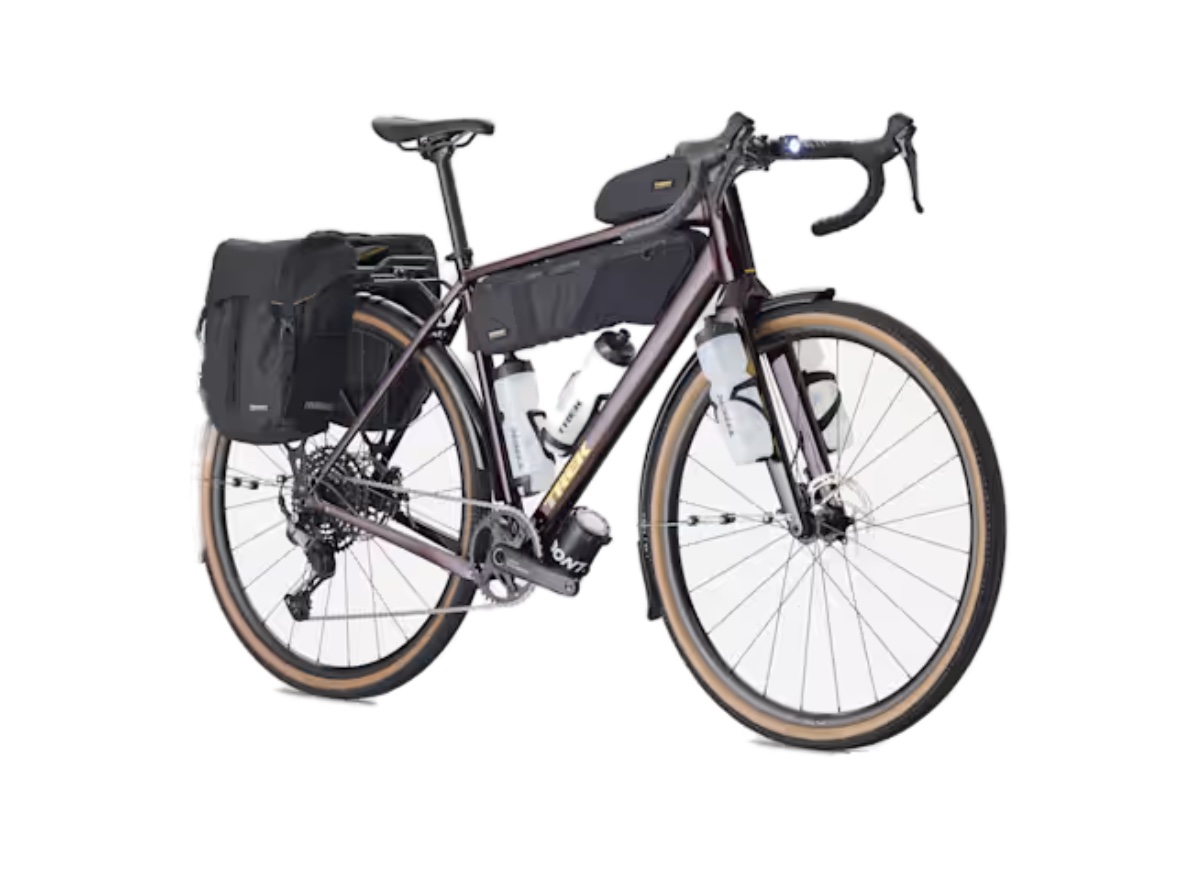

Mounts galore

The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.

Gravel Endurance geometry

Designed with Gravel Endurance geometry with a higher stack and shorter reach for improved comfort and control on long days in the saddle.

Big ‘ol tire clearance

Designed with 50mm (or 29 x 2.0)* tire clearance for more grip and comfort on challenging terrain.*As measured

Suspension fork and dropper post compatible

Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance. *Available on all sizes except XS frames

Specs

Frameset

Frame 300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle Fork Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Wheels

Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle Skewer front Bontrager Switch chamfered thru axle Hub rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle Skewer rear Bontrager Switch chamfered thru axle, removable lever Rim Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve Spokes 14g stainless steel, black Tire Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm Tire part Bontrager TLR sealant, 6oz Max tire size 50mm without fenders, 42mm with fenders (as measured, see manual for details)

Drivetrain

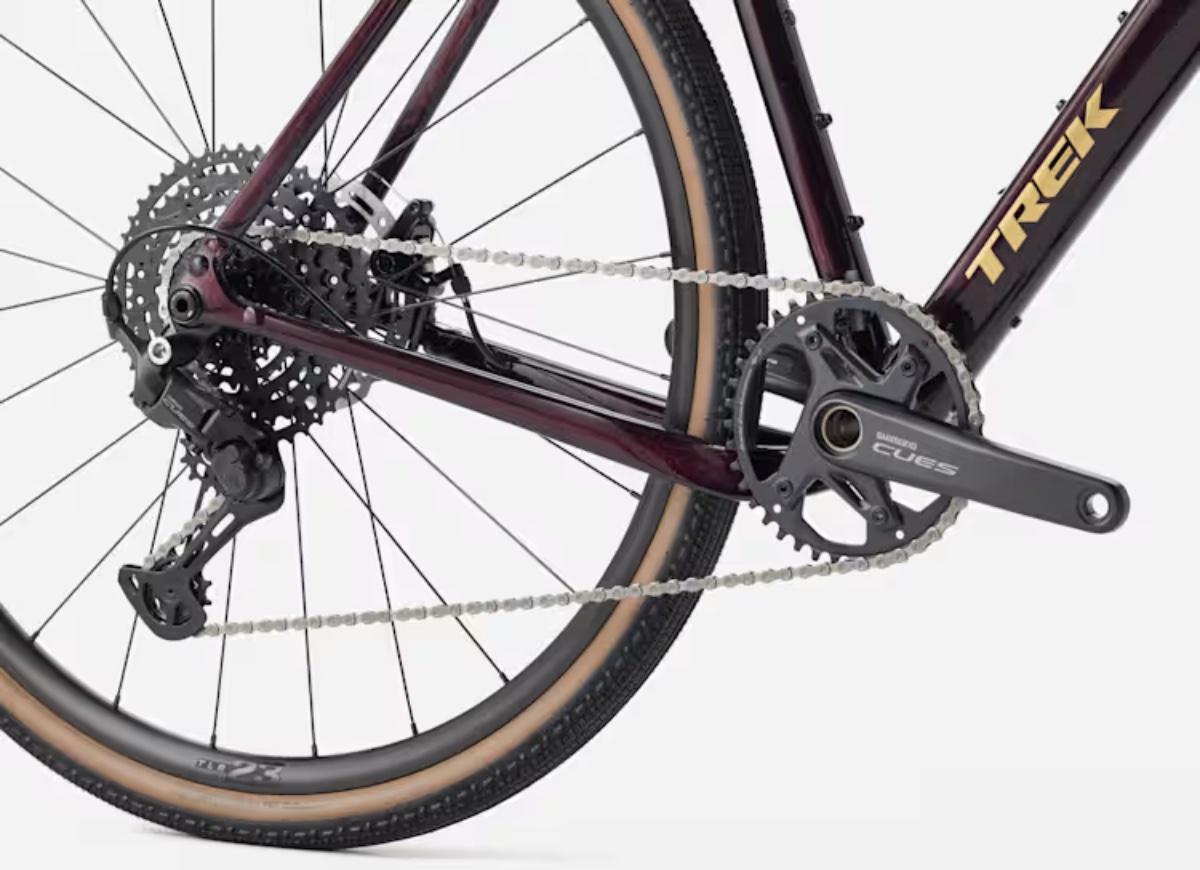

Shifter Shimano CUES 10 Speed Right STU303010R Rear derailleur Shimano CUES U6000 GS *Crank Size: XS, S Shimano CUES FCU60301, 40T ring, 165mm length Size: M, ML Shimano CUES FCU60301, 40T ring, 170mm length Size: L, XL Shimano CUES FCU60301, 40T ring, 172.5mm length Bottom bracket Praxis, T47 threaded, internal bearing Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed Chain Shimano LG500, 9/10/11 speed Max chainring size 1x:44 2x: 46/30

Components

Saddle Verse Short Comp, steel rails, 145mm width Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length *Handlebar Size: XS, S Bontrager Elite Gravel, alloy, 40cm width Size: M, ML Bontrager Elite Gravel, alloy, 42cm width Size: L Bontrager Elite Gravel, alloy, 44cm width Size: XL Bontrager Elite Gravel, alloy, 46cm width Handlebar tape Bontrager Supertack Perf tape *Stem Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length Size: S, M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length Size: ML, L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length Size: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length *Brake Size: XS, S, M, ML, L, XL Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset Size: XS, S, M, ML, L, XL Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor. Size: XS, S, M, ML, L, XL Shimano CUES U3030 Brake rotor Tektro, centerlock, 160mm Rotor size Max brake rotor sizes: 180mm front & rear

Weight

Weight ML – 10.41 kg / 22.96 lbs (with TLR sealant, no tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Nánari upplýsingar

Litur	Dark Carmine
Stærð	M, L, M/L

Racer, Gravel, Cyclocross, Touring
