Stærðir til viðmiðunar. Fleira en hæð og innri saumur (inseam) getur skipt máli þegar stærð á hjóli er valin. Sölumenn í verslun geta aðstoðað við að finna út réttu stærðina.


StellstærðHæðInseam
XS137-155 cm64-73 cm
S153 - 166 cm72-79 cm
M161-175 cm76-82 cm
L174-188 cm82-88 cm
XL186-196 cm87-92 cm
2XL195-203 cm92-95 cm

Stærðartafla fyrir eftirfarandi tegundir: Powerfly, Rail og Farley.

Rail 9.8 GX (750Wh) – 2023

1.449.990 kr.

The Rail 9.8 GX AXS is a long-travel carbon e-MTB that rips like our beefiest trail rigs and powers you right back up the mountain. You get upgraded everything, including the frame for maximum fun on the gnarliest runs. Bosch’s latest tech with the new smart system Performance Line CX that has a longer-range 750 Wh battery and cool features that take your ride to the next level like activity tracking, navigation and Bluetooth connectivity.

Síminn Pay Léttkaup
kr/mán
(m.v. mán)

mán.

Miðað við greiðslur á % vöxtum.

Aðeins % lántökugjald og kr. færslugjald á mánuði.

Árleg hlutfallstala kostnaðar: %.

Heildarkostnaður: kr.

Vörunúmer: 0100640948 Flokkur: Brand:
Stærðartafla

Why you’ll love it

  • Bosch’s new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customisation at your fingertips
  • The full-colour Kiox display shows ride info, connects with your Bluetooth® enabled devices and has a built-in theft prevention feature
  • RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
  • The new frame is extra stout, with a 34.9 mm seat tube to accommodate more robust dropper posts, and an oversized head tube that works with burly eMTB-optimised forks for less flex and more precise steering
  • Trek’s Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

Framset

  • Frame –  NEW OCLV Mountain Carbon main frame, 1.8″ lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Fork – RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock – RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
  • Max compatible fork travel – 170mm (580mm axle-to-crown)

Wheels

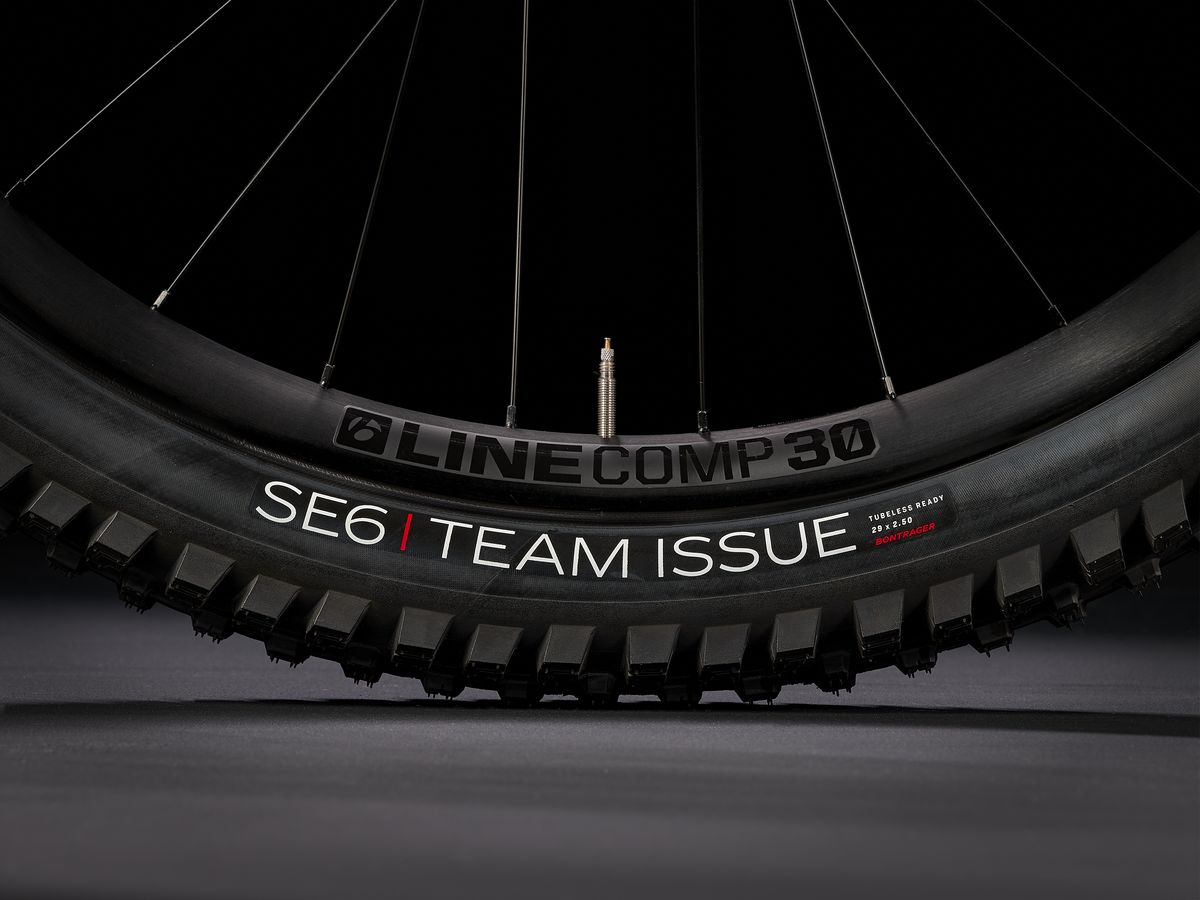

  • Wheel front – Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear – Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
  • Hub front – Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear – Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
  • Skewer rear – Bontrager Switch thru-axle, removable lever
  • Rim – Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • Tyre Size: S, M, L, XL – Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Size: S, M, L, XL – Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre part – Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip – Bontrager TLR
  • Max tyre size – Frame: 29×2.60″ Fork: See manufacturer

Drivetrain

  • Shifter – SRAM GX Eagle AXS, 12 speed
  • Rear derailleur – SRAM GX Eagle AXS
  • Crank – SRAM X1 1000, 34T, 165 mm length
  • Chainring – SRAM X-SYNC 2, 34T, alloy
  • Cassette – SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain – SRAM GX Eagle, 12-speed
  • Pedal – VP-536 nylon platform
  • Max. chainring size – 34T

Components

  • Saddle – Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost Size: S – Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Seatpost Size: M – Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Seatpost Size: L – Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Seatpost Size: XL – Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • Handlebar – Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips – Bontrager XR Trail Elite, nylon lock-on
  • Stem – Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
  • Brake rotor Size: S, M, L, XL – SRAM CenterLine, 6-bolt, round-edge, 180mm
  • Brake rotor Size: S, M, L, XL – SRAM CenterLine, 6-bolt, round edge, 200 mm
  • Brake Set – SRAM Code R 4-piston hydraulic disc

Accessories

  • Battery – Bosch PowerTube 750 Wh, smart system
  • Charger – Bosch standard 4A, 230V, smart system
  • Motor – Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
  • Computer Size: S, M, L, XL – Bosch Kiox 300, smart system

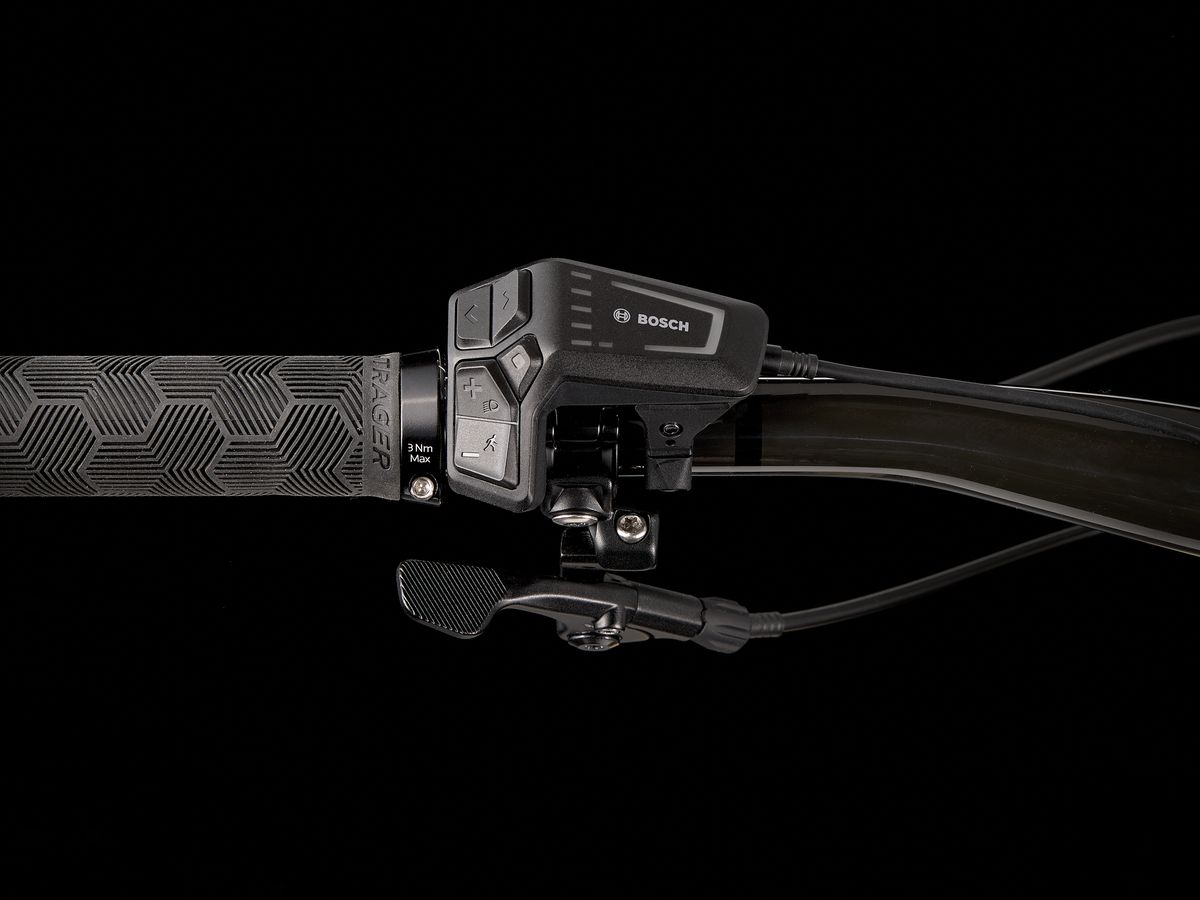

  • Computre Size: S, M, L, XL – Bosch LED remote, smart system

Weight

  • Weight – M – 23.40 kg (with TLR sealant, no tubes)
  • Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.

Nánari upplýsingar

Litur

Prismatic Black

Stærð

S, M, L, XL
