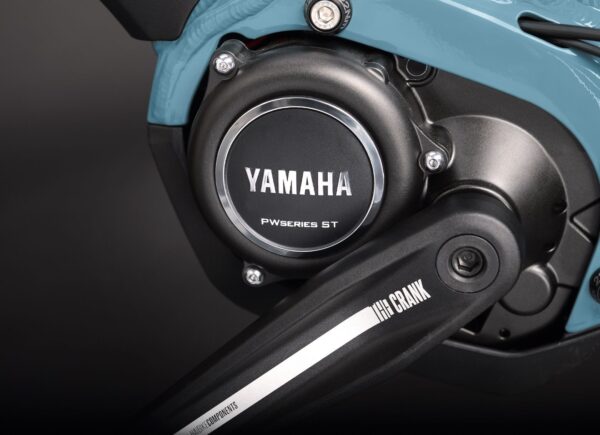

- Engine – Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

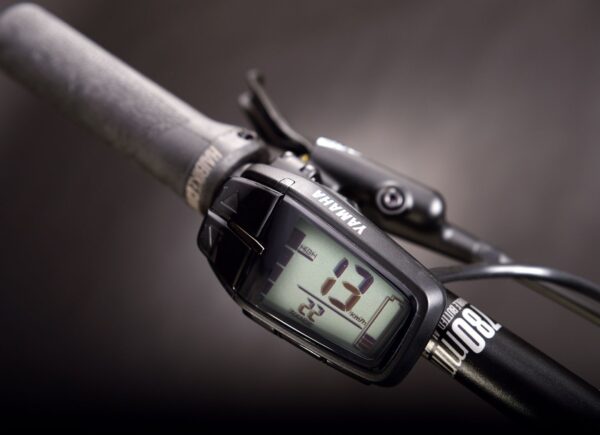

- Display – Yamaha, Side Switch, 1.7″ LCD, 7 functions
- Battery – Yamaha, InTube, 500 Wh

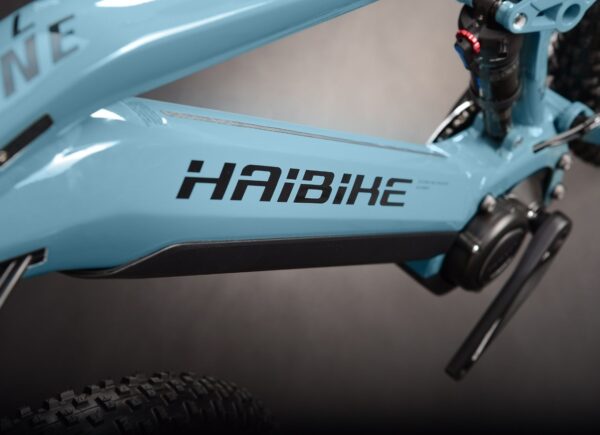

- Frame Family – Haibike, FullNine Yamaha i500, Aluminium 6061
- Fork – RockShox, 35 Silver , Steel spring, Travel= 100 mm, Aluschaft 1 1/8 – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

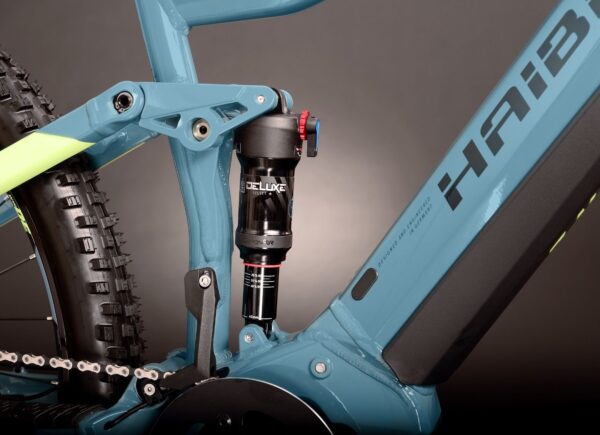

- Damper – RockShox, Deluxe Select Plus, Air
- Crank Arm – Haibike Components, The Crank +, Aluminium
- Brake (Front) – Tektro, Orion M745 , 203 mm, 4-piston disc brake

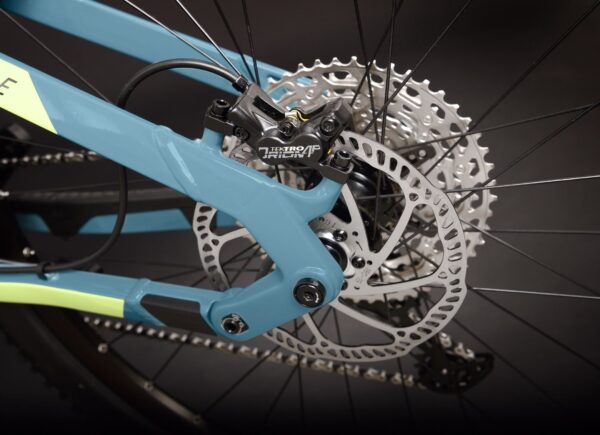

- Brake (Rear) – Tektro, Orion M745 , 180 mm, 4-piston disc brake
- Tube – Presta valve
- Rim – Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
- Clmaping Ring – Internal hexagon, 34.9 mm
- Rear Derailleur – Shimano, Deore M5100
- Shift Lever – Shimano, Deore M5100, Trigger switch, 11 Speed
- Bottom Bracket – Integrated in the motor
- Sprocket – Shimano, M5100, 11 – 51 teeth
- Chain – KMC, X11e
- Chainring – Steel, 38 teeth
- Chain Guide – Nylon directmount
- Brake Lever – Tektro, Orion M745, Aluminium
- Brake Disc (Front) – Tektro, TR203
- Brake Disc (Rear) – Tektro, TR180
- Tire – Schwalbe, Nobby Nic Performance, 65-622, 29″ x 2.6″
- Front Wheel Hub – Haibike Components, The Hub ++ , 6-bolt standard
- Rear Wheel Hub – Haibike Components, TheHub ++ Steckachse 12×148, 6-bolt standard
- Spoke – Sapim, Leader, Black
- Handlebar – Haibike Components, TheBar +++ Gravity , 780 mm
- Grips – Haibike, MTB grips
- Stem – Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °
- Headset – Feimin, A-Head Tapered, Aluminium, Cartridge
- Saddle – Haibike Components, TheSaddle
- Seat Post – Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
- Pedals – Freeridepedal , Aluminium, with Reflector,
- Permitted Total Weight – 120.0 kg
Haibike rafmagnshjól - Full Suspension
Stærðir til viðmiðunar. Fleira en hæð og innri saumur (inseam) getur skipt máli þegar stærð á hjóli er valin. Sölumenn í verslun geta aðstoðað við að finna út réttu stærðina.
Stellstærð | Hæð |
---|---|
S / 40 cm | 160-170 cm |
M / 45 cm | 170-180 cm |
L / 50 cm | 180-186 cm |
XL / 55 cm | 186-198 cm |
Stærðartafla fyrir eftirfarandi tegundir: Full Suspension rafmagnshjól.

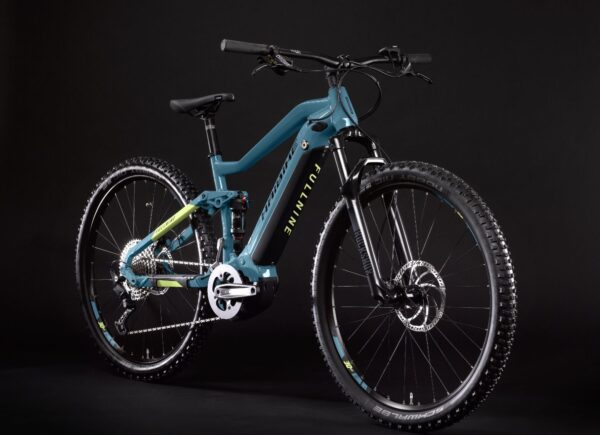

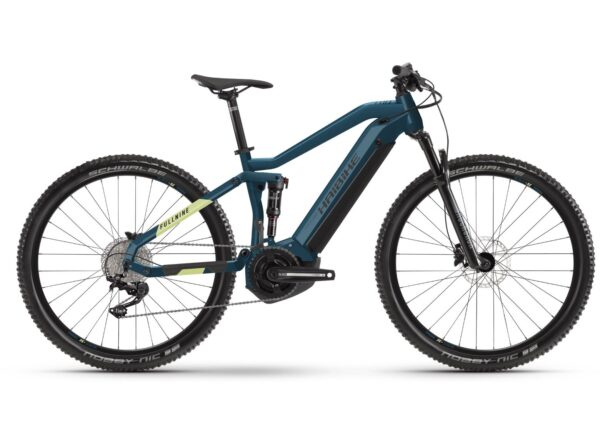

FullNine 5 500Wh 11G
539.990 kr.
Do you love long tours, and are looking for a reliable eMTB with the comfort of a full-suspension and the smoothness of a 29″? Then the FullNine 5 is your eBike! Equipped with a powerful Yamaha PW-ST motor and beautifully designed downtube integration of the battery, 4-piston disc brakes, Shimano shift components and wide Plus-size tyres, it is a true easy rider for long rides on smooth terrain.
Nánari upplýsingar
Litur | Blue Canary |
---|---|
Stærð | M/44, L/48, XL/52, S/41 |
